BCM2005x
Ex-Remote LED Display BCM2005x Series remote LED display, adopting galvanized sheet stamping process and electrostatic powder spraying technology, the enclosure has elegant appearance and fine durability. With the latest generation display module, the BCM2005x Series bring high brightness and high resolution, can display text information distinctly and clearly even in distance. The display can be installed and work at ex dangerous area identified as Ex grade [ Exd IIB T6]. |
|
Features:
Classified area: Class II, Division 1 or 2, Group B, temperature code T6
LED lattice screen
Character height: 120mm
Outdoor rainproof type
Metrological display of industrial weighing
Isolated RS232 / RS485 serial interface
220VAC power supply
Matching with all type of weighing terminal
European power plug available
Selection Configuration：
Model | P.N | Description |
BCM2005x-2 | 22000361 | wall mounted，lifting，Character height：120mm,RS232，220VAC power supply |
BCM2005x-4 | 22000360 | wall mounted，lifting，Character height： 120mm,RS485，220VAC power supply |
Specification:
Installation | wall mounted, lifting |
Brightness | Automatically adjust the brightness level according to the climatic situation |
Baud rate | 600 、1200、 4800、 9600 、19200、38400 |
Temperature range | - 42℃~85℃，accuracy is approximately±2℃ |
Size of the display | 490*120 mm（length x height） |
Size of the screen body | 620mm*250mm*140mm （length x height x depth） |
Pixels | 64*12 pixels（length x height） |
USART | RS232/RS485 |
Serial Protocol | Continuous Output |
Power Supply | 100~240VAC |
Operating Temperature | -10°C ~ +50°C，Relative humidity:10%~90%，non-condensing |

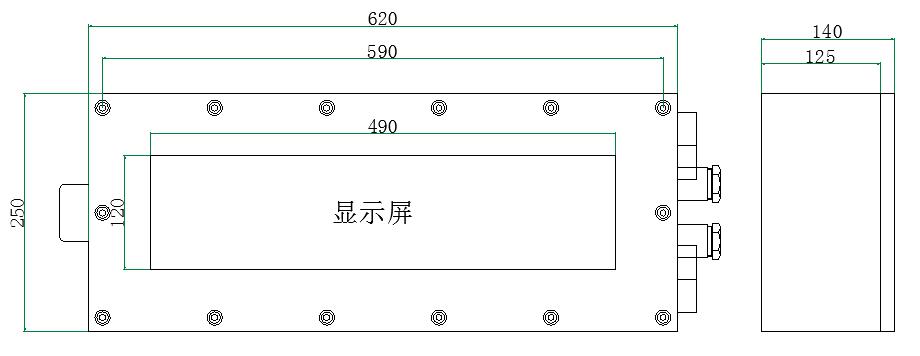

Dimensions(mm):
