GW Weighing Module

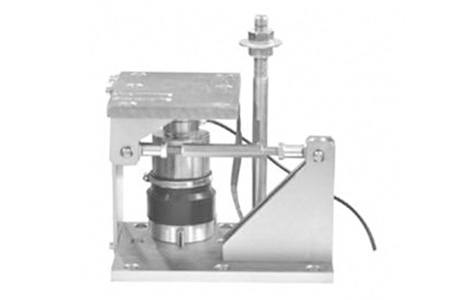

 | GW weighing module is widely used in chemical, pharmaceutical，food and other industries。Professional design ensures that the weight of the scale is always perpendicular to the load cell。Only need appropriate capacity and reserve appropriate installation holes to transform the equipment into a weighing measuring device. |

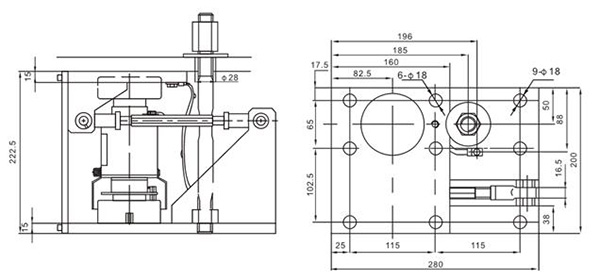

Dimensions(mm):

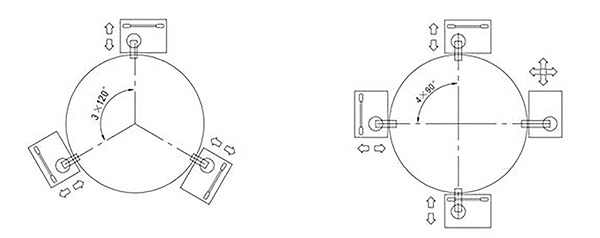

Installation layout： Circular layout

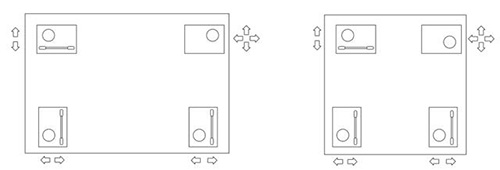

Square layout | Features： IP67 protection Anti-overturning functionn Sealing:hermetically welded Nickel plated alloy steel & Stainless steel Max.capacities：10t~50t |
Specification:
Maximum capacity（Emax）（kg） | 10 | 15 | 20 | 25 | 30 | 40 | 50 | ||
Rated output（mV/V） | 2.0±0.002 | ||||||||
Accuracy class（%F.S） | ±0.02 | ±0.03 | ±0.05 | ||||||
Zero balance（%F.S） | ±1 | ||||||||
Temp.effect on zero（%F.S/10℃） | ±0.02 | ||||||||
Temp.effect on zero（%F.S/10℃） | ±0.02 | ||||||||
Input resistance（Ω） | 400±20 / 700±20 | ||||||||
Output resistance （Ω） | 352±3 / 706±7 | ||||||||
Insulation resistance@50VDC（MΩ） | ≥5000 | ||||||||
Temperature range compensated（℃） | -10~﹢40 | ||||||||
Temperature range operating （℃） | -30~﹢70 | ||||||||
Safe load limit（%F.S） | 150 | ||||||||
Ultimate load limit（%F.S） | 250 | ||||||||
Excitation voltage,recommend（V DC） | 10~12 | ||||||||
Excitation voltage,maximum（V DC） | 15 | ||||||||
Protection class | IP68 | ||||||||
Construction | alloy steel、 Stainless steel | ||||||||
Cable | Length ：10m（10~15t），12m（20~25t）,14m（30t），16m（40~50t） | ||||||||
Diameter：Φ5.8mm | |||||||||
Wiring schematic diagram | Exc+：Red；Exc-：Black；Sig+：Green；Sig-：White | ||||||||
