CW Weighing Module
  | CW weighing module is a kind of dynamic weighing module which is convenient for customers to install and use quickly. The structure is designed with self-stabilized pressure head. It has good weighing repeatability and is equipped with horizontal limit screw. It can be used in the occasion of bearing horizontal force. |

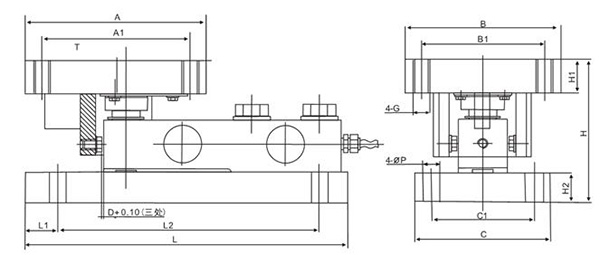

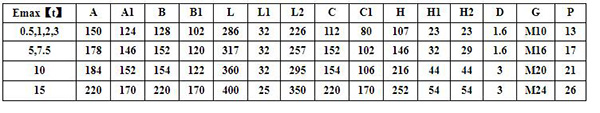

Dimensions(mm):

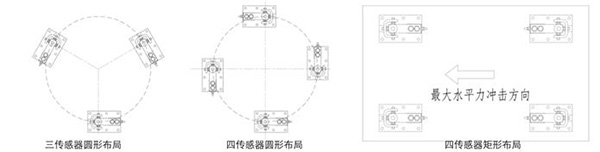

Installation layout：
| Features： IP67 protection Anti-overturning functionn Sealing:hermetically welded Nickel plated alloy steel & Stainless steel Max.capacities：0.5t~15t |
Specification:
Maximum capacity（Emax）（kg） | 0.5 | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | ||
Rated output（mV/V） | 2.0±0.002 | |||||||||
Accuracy class（%F.S） | ±0.02 | ±0.03 | ±0.05 | |||||||
Zero balance（%F.S） | ±1 | |||||||||
Temp.effect on zero（%F.S/10℃） | ±0.02 | |||||||||
Temp.effect on zero（%F.S/10℃） | ±0.02 | |||||||||
Input resistance（Ω） | 400±20 | |||||||||
Output resistance （Ω） | 352±3 | |||||||||
Insulation resistance@50VDC（MΩ） | ≥5000 | |||||||||
Temperature range compensated（℃） | -10~﹢40 | |||||||||
Temperature range operating （℃） | -30~﹢70 | |||||||||
Safe load limit（%F.S） | 150 | |||||||||
Ultimate load limit（%F.S） | 200 | |||||||||
Excitation voltage,recommend（V DC） | 10~12 | |||||||||
Excitation voltage,maximum（V DC） | 15 | |||||||||
Protection class | IP67 | |||||||||
Construction | alloy steel、 Stainless steel | |||||||||
Cable | Length：2.6m（0.5~2t），3.5m（3t），5.2m（5~8t），7m（10t），12m（15t） | |||||||||
Diameter：Φ5.8mm | ||||||||||
Wiring schematic diagram | Exc+：Red；Exc-：Black；Sig+：Green；Sig-：White | |||||||||
